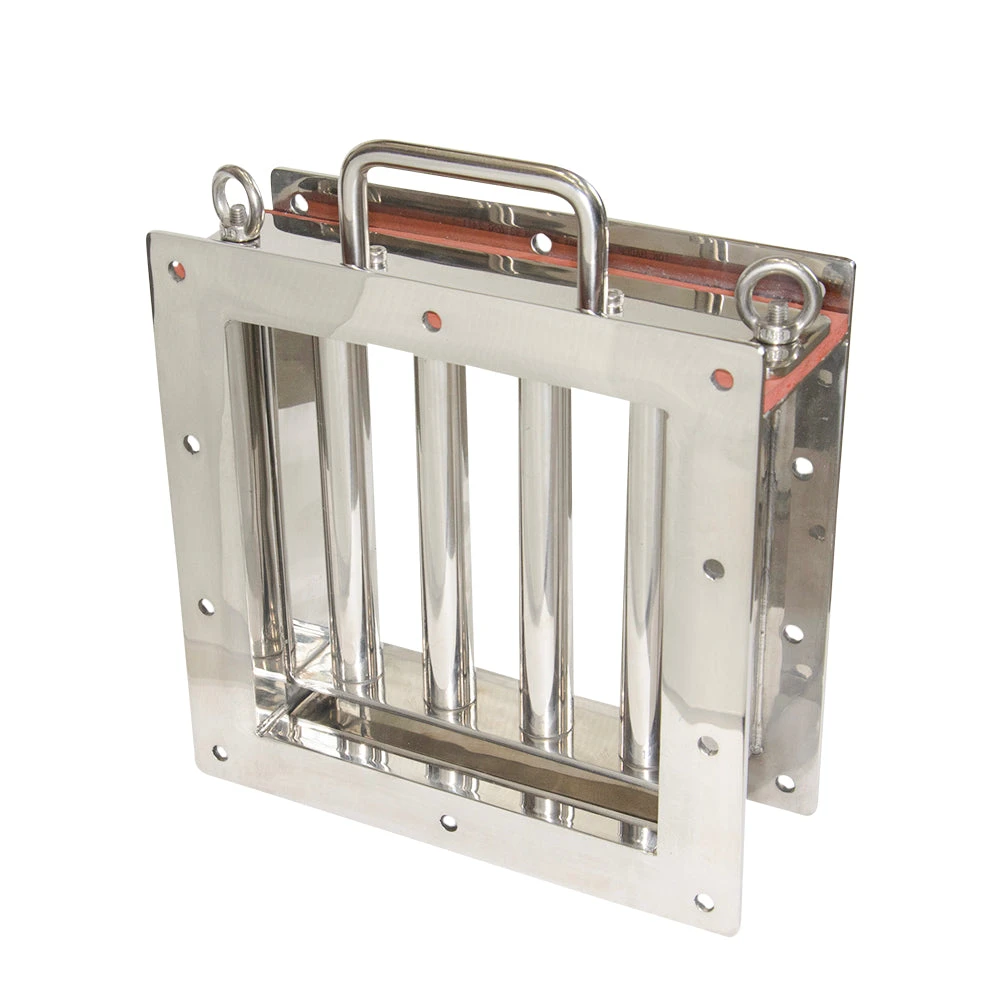

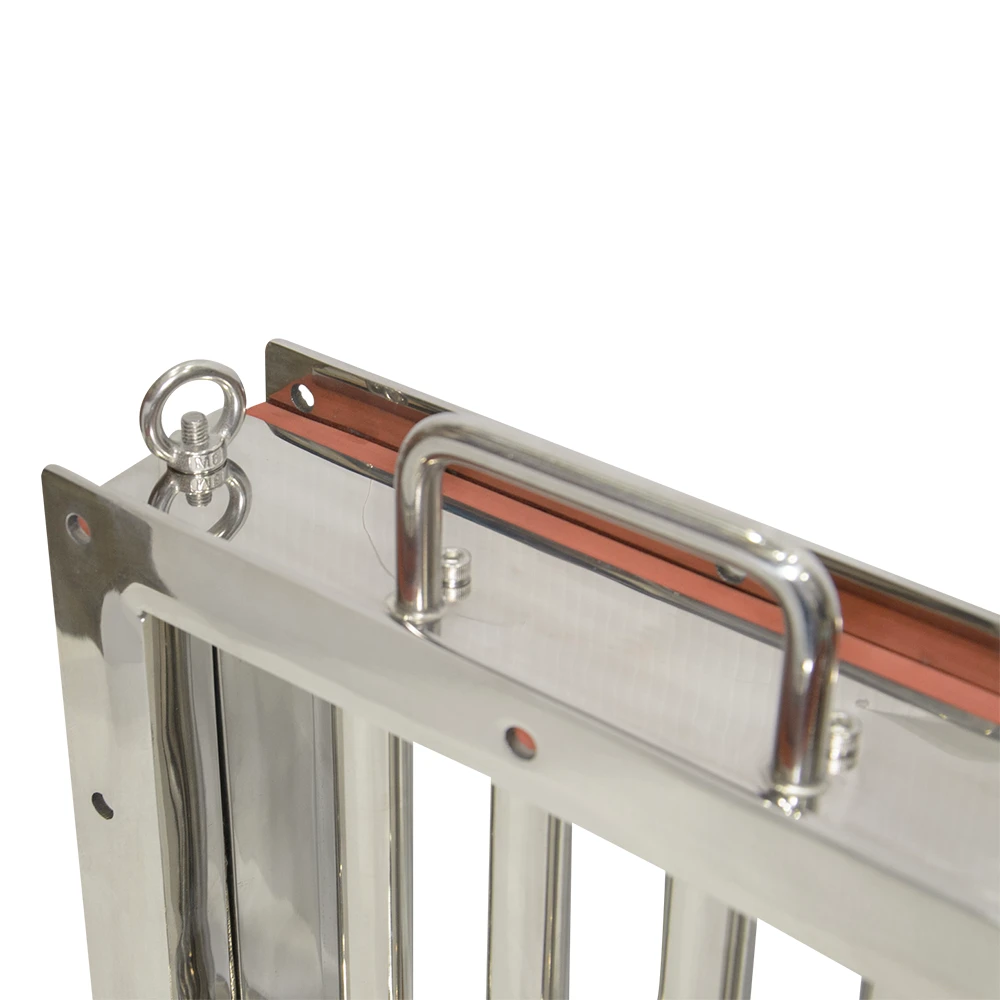

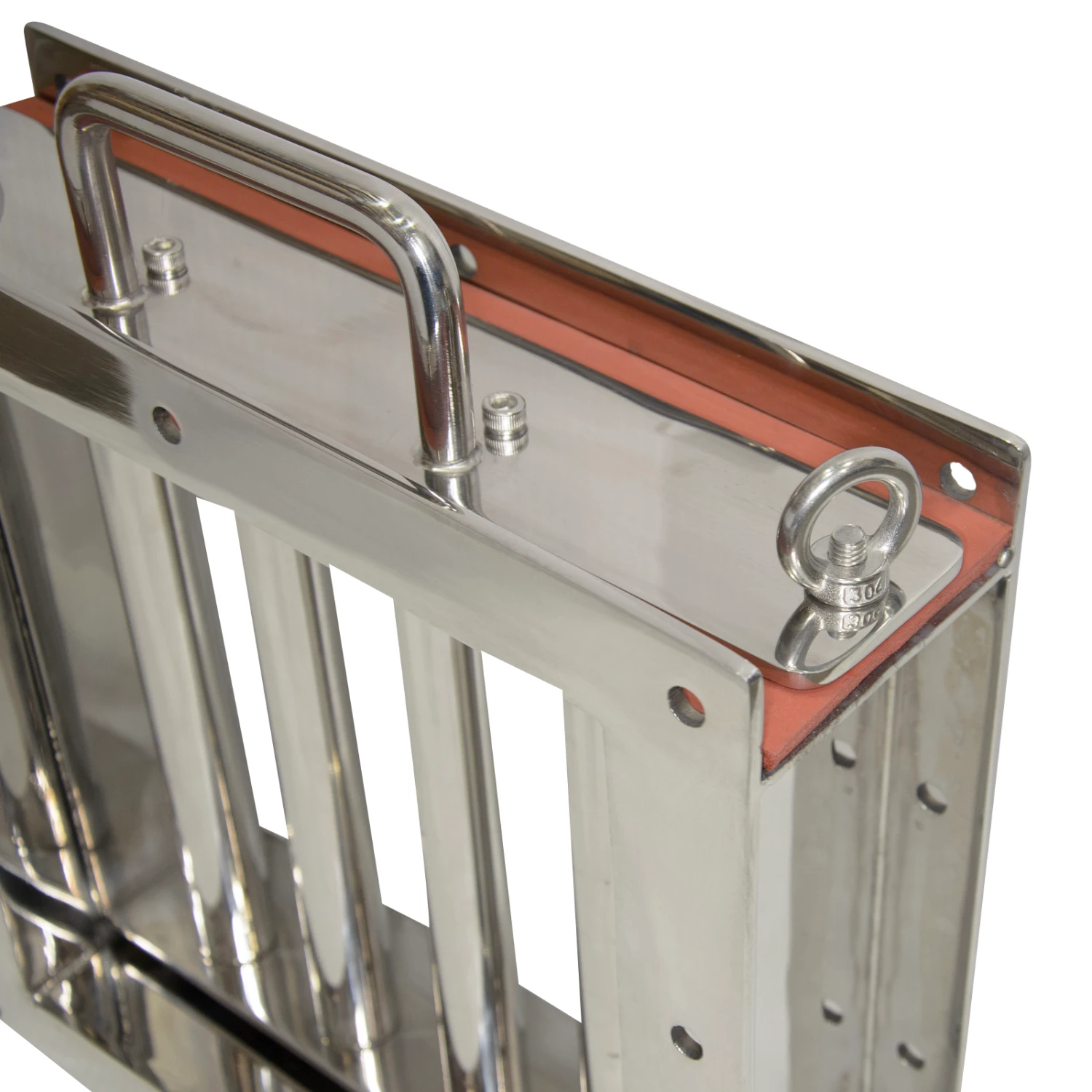

Drawer Grate Magnet – 210mm X 210mm | Min 10,000 Gauss

This 210mm x 210mm Drawer Grate Magnet is designed with powerful Rare Earth Neodymium magnets, providing a minimum magnetic strength of 10,000 Gauss. It features 4 magnet bars, each spaced 50mm apart with a 25mm gap beneath each bar, to ensure maximum efficiency in capturing and removing ferrous particles from your production flow.

Key Features:

• Magnetic Strength: Minimum 10,000 Gauss for superior ferrous particle removal.
• Structure: 4 magnetic bars spaced 50mm apart, with 25mm clearance between each bar.
• Durability: Designed for industrial use, with easy maintenance and cleaning.

Applications:

• Industries: Ideal for food processing, plastic manufacturing, and recycling industries where effective removal of iron particles and other ferrous contaminants is critical.
• Installation & Maintenance:

With the advancements in magnetic technology, modern Rare Earth Neodymium magnets provide up to six times the strength of traditional ceramic-based magnets. This ensures that your production line remains free from foreign matter, enhancing product quality without interrupting workflow.

For custom-built grate magnets tailored to your specific needs, contact our office for more information.
