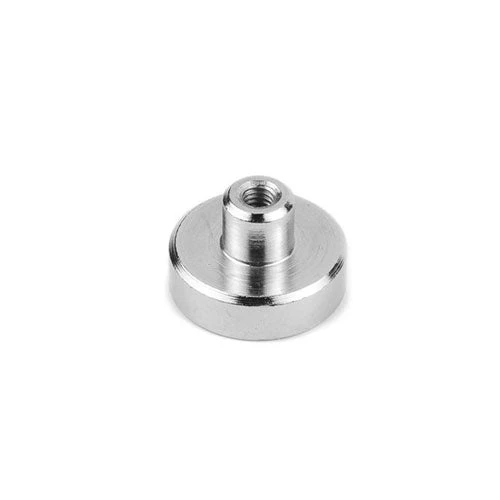

Female Thread Neodymium Pot Magnet – Diameter 16mm X 13mm

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 16mm, a total height of 13mm and a magnet housing thickness of 5mm. It has a 4mm female thread. This female threaded magnet has a pull force of 5.5kg and a weight of 8 grams. It is identified by the AMF magnet part number AMFYPD16.

Uses for our rare earth female thread pot magnets:

These Female Threaded Holding Pot Magnets are commonly used with standard hardware such as bolts, hooks and eyelets with the corresponding thread. Magnetic hooks or eyelets are a non-destructive way of attaching or suspending objects and they can be removed and repositioned as needed without the need for tools or damage the underlying surface. These Neodymium pot magnets are a mainstay of the security industry, used as a component in most commercial and residential security systems. Similarly, they are commonly used in the professional installation of fire and HVAC systems. The reliability or a permanent magnet coupled with their robust construction make them suitable for these long-lasting systems.



ModelNo.	DØ	D1Ø	M	H	h	Holding force(kg)	Weight (g)
AMFYPD10	10	5.5	3	12	5	2.2	3.5
AMFYPD12	12	6	3	13	5	3.2	5
AMFYPD16	16	6	4	13	5	5.5	8
AMFYPD20	20	8	4	15	7	9	17
AMFYPD25	25	10	5	17	8	22	32
AMFYPD32	32	10	6	18	8	34	47
AMFYPD36	36	10	6	18	8	41	59
AMFYPD42	42	10	6	20	9	68	87
AMFYPD48	48	12	8	24	11.5	81	132
AMFYPD60	60	14	8	30	15	113	270
AMFYPD75	75	16	10	34	18	164	552
