Magnetic Product Description:

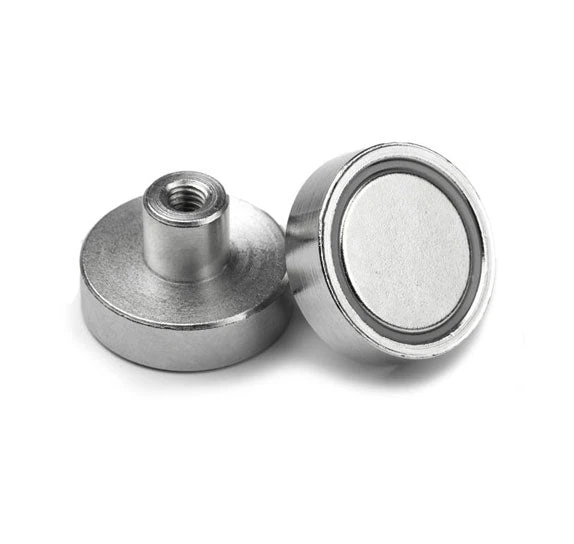

This rare earth female threaded pot magnet has a diameter of 20mm, a total height of 15mm and a magnet housing thickness of 7mm. It has a 4mm female thread with an external boss of 8mm. This female threaded magnet has a pull force of 9kg and a weight of 17 grams. It is identified by the AMF magnet part number AMFYPD20.
Uses for our rare earth female thread pot magnets:
Pot magnets are specially designed Neodymium magnets with a steel casing on one side. The casing deflects the magnetic field to the base which magnifies its holding ability and also protects the fragile magnet inside from damage. Pot magnets are available with various accessories and attachment options that enable magnetic hold to be extended to non-metallic materials and these can include timber, plastic and non-ferrous alloys. This Neodymium Pot magnet has a Female Thread attachment point that allows it to be attached to other surfaces with a bolt. Attach the pot magnet to your preferred material to make it compatible with any metal surface. The convenience and versatility of magnetic attachment makes it easy to attach and remove signage, decorative material, communications equipment or protective shields to steel and metallic surfaces. The durable nature of Pot magnets means they have practical applications on industrial sites, retail stores, mining operations and various outdoor locations where the protective steel casing also shields the magnet inside from damaging corrosive forces.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
