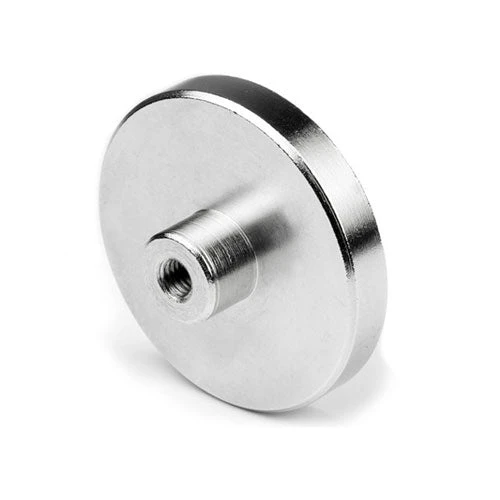

Female Thread Neodymium Pot Magnet – Diameter 75mm X 34mm

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 75mm, a total height of 34mm and a thickness of 18mm. It has a 10mm female thread with an external boss of 16mm. This female threaded magnet has a pull force of 164kg and a weight of 552 grams. It is identified by the AMF magnet part number AMFYPD75.

Uses for our rare earth female thread pot magnets:

These Neodymium Pot magnets have a Female Thread for convenient attachment to other materials with a bolt. These materials can include timber, acrylic and other non-ferrous materials including aluminium. These 75mm diameter female Pot magnets can also be fitted with Hooks or Eyelets to convert them into handy suspension tools for organising all types of equipment, in a safe and convenient way. The magnet is encased in steel which protects the magnet from damage, while also deflecting the magnetic force to the base, giving it excellent holding capability and increased attractive power. Non-metallic materials can be fitted with these magnets with a bolt and then attached to metal surfaces like pallet racking, machinery or vehicles, for example. In other applications, they attach to threaded rod can be used to display advertising material or signage which is attached magnetically and easily removed and reattached. Unlike traditional methods of attachment, magnetic bond is non-penetrative and does not require tools or expertise to implement. For outdoor markets, food trucks, workshops and retail displays, Female Thread Pot magnets are extremely popular.



ModelNo.	DØ	D1Ø	M	H	h	Holding force(kg)	Weight (g)
AMFYPD10	10	5.5	3	12	5	2.2	3.5
AMFYPD12	12	6	3	13	5	3.2	5
AMFYPD16	16	6	4	13	5	5.5	8
AMFYPD20	20	8	4	15	7	9	17
AMFYPD25	25	10	5	17	8	22	32
AMFYPD32	32	10	6	18	8	34	47
AMFYPD36	36	10	6	18	8	41	59
AMFYPD42	42	10	6	20	9	68	87
AMFYPD48	48	12	8	24	11.5	81	132
AMFYPD60	60	14	8	30	15	113	270
AMFYPD75	75	16	10	34	18	164	552
