Magnetic Lifter 2000kg I 3.5x Safety Factor

Magnetic Product Description:

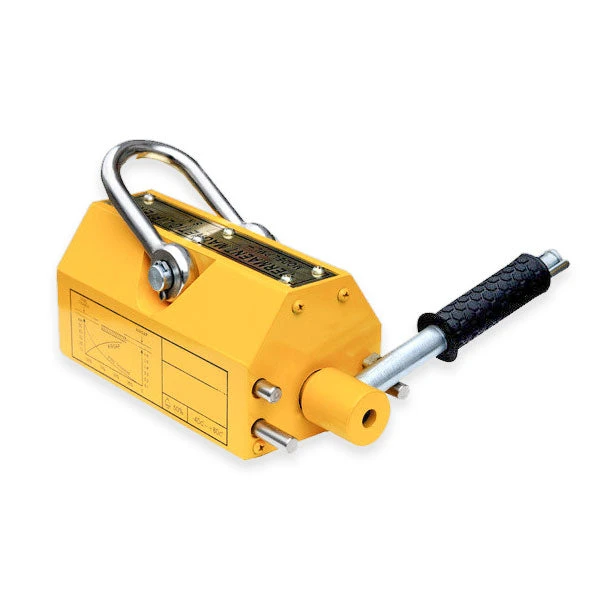

This 2000kg Magnetic Lifter has a width of 234mm, a length of 378mm, a height of 212mm, and a 465mm lifter handle. It is identified by the AMF magnets part number 89134. Important: this magnetic lifter is rated at 2000kg against a minimum of 55mm steel. AMF Magnets range of high strength magnetic lifters are produced with super strong Neodymium magnets, with your safety in mind. Operation is by way of turning the manual handle once on the operating surface. Magnetic Lifters are a versatile, cost effective and convenient way of loading, unloading and moving steel plates, blocks or cylinders in a safe manner.

All AMF Magnetic Lifters are compliant with Australian Standard AS 4991-2004 which requires a tear-off force of at least 3 times rated capacity for permanent lifting magnets and at least 2 times rated capacity for battery-powered lifting magnets.

AMF’s range of magnetic lifters are all permanent magnetic lifters, therefore they do not require a battery or power source to operate.

Any magnetic lifters that do not meet at least a 3:1 Safety Factor, does not comply with the Australian Standard for the legal requirements of safe operation within Australia.

Magnetic Lifters Operation Safety Instructions and Maintenance Manual can be found here.

Uses for our Magnetic Lifter:

Ideal for lifting in factories, docks, warehouses, transportation or engineering workshops, AMF Magnets Magnetic Lifters are light, ingeniously constructed for ease of application and have a 3.5 : 1 safety built into each unit. Another key benefit of the Magnetic Lifters is that they are fitted with the strongest magnetic materials available, Rare Earth Neodymium magnets, which will never weaken, providing durable and consistent operation.

AMF Magnetics’ range of magnetic lifters are light and ingeniously structured, easy for application, strong magnetic attraction and safe in handling!



AMF100

AMF300

AMF600

AMF1000

AMF2000

AMF3000

AMF6000
