Magnetic Pipe Lifter | 600kg Flat Steel | 300kg Cylinder Pipe I 3.5x Safety Factor

Magnetic Product Description:

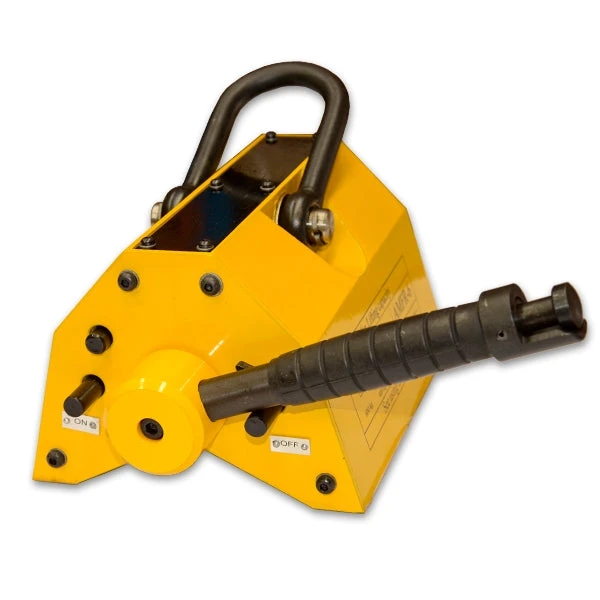

This 600kg Powerful Magnetic Lifter has a length of 278mm, a width of 190mm, a base height of 140mm height, and a height of 250mm including the shackle. It is identified by the AMF Magnets part number 89132P. Important: this magnetic lifter is rated at 600kg against a minimum of 25mm thick flat steel or 300kg against a minimum of 25mm thick curved steel pipe. Please contact us for further information about this product.

All AMF Magnetic Lifters are compliant with Australian Standard AS 4991-2004 which requires a tear-off force of at least 3 times rated capacity for permanent lifting magnets and at least 2 times rated capacity for battery-powered lifting magnets.

AMF’s range of magnetic lifters are all permanent magnetic lifters, therefore they do not require a battery or power source to operate.

Any magnetic lifters that do not meet at least a 3:1 Safety Factor, does not comply with the Australian Standard for the legal requirements of safe operation within Australia.

AMF Magnetics’ ranges of high strength magnetic lifters are produced with super strong Neodymium magnets, with your safety in mind. Operation is by way of turning the manual handle once on the operating surface. Magnetic Lifters are a versatile, cost effective and convenient way of loading, unloading and moving steel plates, blocks or cylinders in a safe manner.

Uses for our powerful Magnetic Pipe Lifters:

Ideal for lifting in factories, docks, warehouses, and transportation or engineering workshops, AMF Magnetics Magnetic Lifters are ingeniously constructed for ease of application and have a strong magnetic path supplied by NdFeB magnetic materials. On and off the magnetic path is controlled by turning the handle. A shackle on top of the Magnetic Pipe Lifter for lifting, and a V-shape slot on the bottom for holding a cylindrical component firmly.

The modern preference for using steel instead of timber or masonry, means lifting and carrying methods have changed. Magnetic lifters help manage the risk and cost of dragging, lifting and carrying steel fabrications of all shapes and sizes. Loved for its price, strength and longevity, steel is very heavy and presents handling hazards. Construction, mining, agriculture, shipping and manufacturing sectors are big users of steel. Deploying magnetic lifters in conjunction with all types of rigging technologies reduces the risk of work place injury when moving metal products.

Magnetic lifters hooked up with rigging technologies like traditional chain or electrical powered block and tackle assemblies, truck mounted hydraulic powered cranes, demountable construction site cranes and hoists embedded in factories and workshops reduce the drama inherent in moving steel fabrications. Magnetic lifters allow a single person to lift, shift and release with the devices fail safe lever, large quantities of very heavy goods from a safe distance. Using magnetic lifters removes the need to encircle a load, reducing the risk of crush injuries. Magnetic lifters subject the surface or crown of a steel object to brute force magnetic suction or cling, protecting the product with release at their known capacity in the event of a snag that might otherwise damage more valuable equipment.

---



				Flat Steel			Cylinder Pipe
Product Description	Graph Key	AMF Product Code	Rated Lifting Strength (kg)	Safe Factor	Minimum Diameter (mm)	Rated Lifting Strenth (kg)	Safe Factor	Minimum Diameter (mm)
6000kg Pipe Lifter	A	Contact our office	6000	>3	100
3000kg Pipe Lifter	B	Contact our office	3000	>3	80	1200	>3	250
2000kg Pipe Lifter	C	Contact our office	2000	>3	60	1000	>3	200
1000kg Pipe Lifter	D	Contact our office	1000	>3	50	500	>3	150
600kg Pipe Lifter	E	89132P	600	>3	40	300	>3	100
300kg Pipe Lifter	F	89131P	300	>3	40	150	>3	100
100kg Pipe Lifter	G	Contact our office	100	>3	40	50	>3	80
