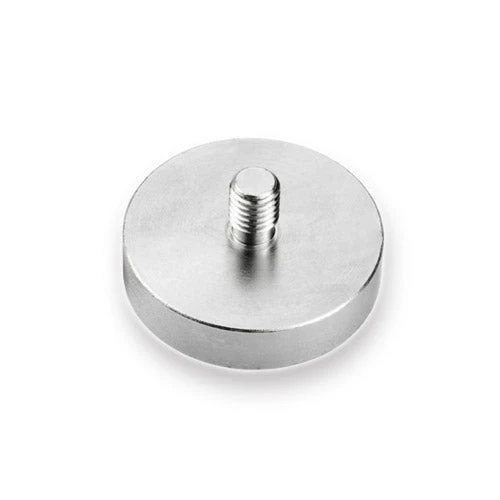

Male Thread Neodymium Pot Magnet – 42mm (D) X 20mm (TH) | M8 Thread

Male Thread Neodymium Holding Magnet Description:

AMF Magnetics offers a variety of Holding Pot Magnets in diverse sizes and shapes, each with a unique level of strength. The featured Neodymium Pot Magnet boasts a pull strength of 68 kilograms and a male M8 thread that easily screws into a female thread.

This high-strength Male Thread Neodymium Pot Magnet boasts a remarkable 68-kilogram pull force despite its small 42mm diameter and 9mm base height. Its 20mm total height includes an 8mm thread and a 1.25mm thread pitch. Its strong neodymium magnet is safeguarded by mild steel for corrosion and chip resistance.

This product is identified by AMF Magnetics part number AMFYPC42/8.

Uses for our Rare Earth Pot Magnets with Male Thread:

This male thread neodymium pot magnet has a diameter of 42mm and a thickness of 20mm, with a M8 (8mm thread) for easy installation. It is specifically designed for providing a strong holding force through the thread and the magnet’s powerful strength. Its versatility and convenience in industrial applications make it a useful product. To create a secure hold, simply use a washer and a nut with this threaded rare earth holding pot magnet and screw it into a female thread for a firm grip.

Product Code	DØ (mm)	M (mm)	H (Total Height) (mm)	h (Base Height) (mm)	Thread Pitch (mm)	Holding force (kg)	Weight (g)
AMFYPC10	10	3	12	5	0.5	2.2	3.5
AMFYPC12	12	3	13	5	0.5	3.2	5
AMFYPC16	16	4	13	5	0.7	5.5	7.5
AMFYPC20	20	4	15	7	0.7	9	16
AMFYPC25	25	5	17	8	0.8	22	30
AMFYPC32	32	6	18	8	1	34	45
AMFYPC36	36	6	18	8	1	41	57
AMFYPC42	42	6	20	9	1	68	84
AMFYPC42/8	42	8	20	9	1.25	68	84
AMFYPC48	48	8	24	11.5	1.25	81	130
AMFYPC60	60	8	30	15	1.25	113	254
AMFYPC75	75	10	34	15	1.50	164	550
