Male Threaded Magnetic Pot Product Description:

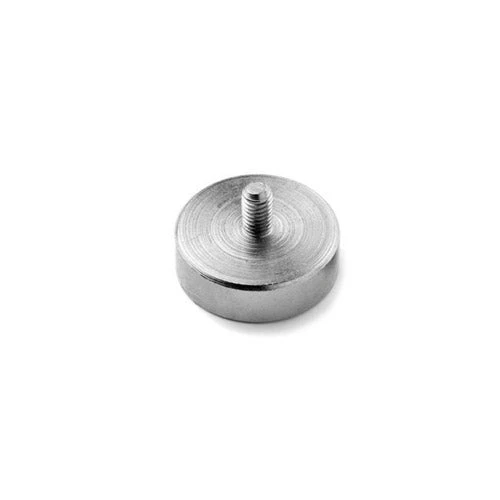

AMF magnets use very strong neodymium magnets to create this Rare Earth Male Threaded Holding Magnet. This product has a diameter of 25mm, a total height of 17mm and a magnet housing thickness of 8mm. This permanent magnet has a magnetic round base with an M5 male threaded stud attached with an external boss of 9mm. This pot magnet has an overall pull strength of 22kg and a total weight of 30 grams.
Uses for our Rare Earth Male Thread Pot magnets:
This Rare Earth Holding Pot Magnet has a Male threaded boss protruding from the steel cap that encloses a Neodymium magnet. The steel cap alters the magnetic field; so it is diverted to the base and considerably increases the holding force of the magnet.
These magnets are popular with signage and lighting companies as their relatively small dimensions coupled with their strong pull force make them valued for their reliable and secure holding capacity. The Male Threaded boss allows for easy attachment to existing products and designs using a washer and nut. A female threaded boss is an alternative option which can be incorporated into the design for a seamless and hassle-free solution.
| Product Code | DØ (mm) | M (mm) | H (mm) | h (mm) | Thread Pitch (mm) | Holding force (kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 0.5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 0.5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 0.7 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 0.7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 0.8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 1 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 1 | 41 | 57 |
| AMFYPC42 | 42 | 6 | 20 | 9 | 1 | 68 | 84 |
| AMFYPC42/8 | 42 | 8 | 20 | 9 | 1.25 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 24 | 11.5 | 1.25 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 1.25 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 1.50 | 164 | 550 |
