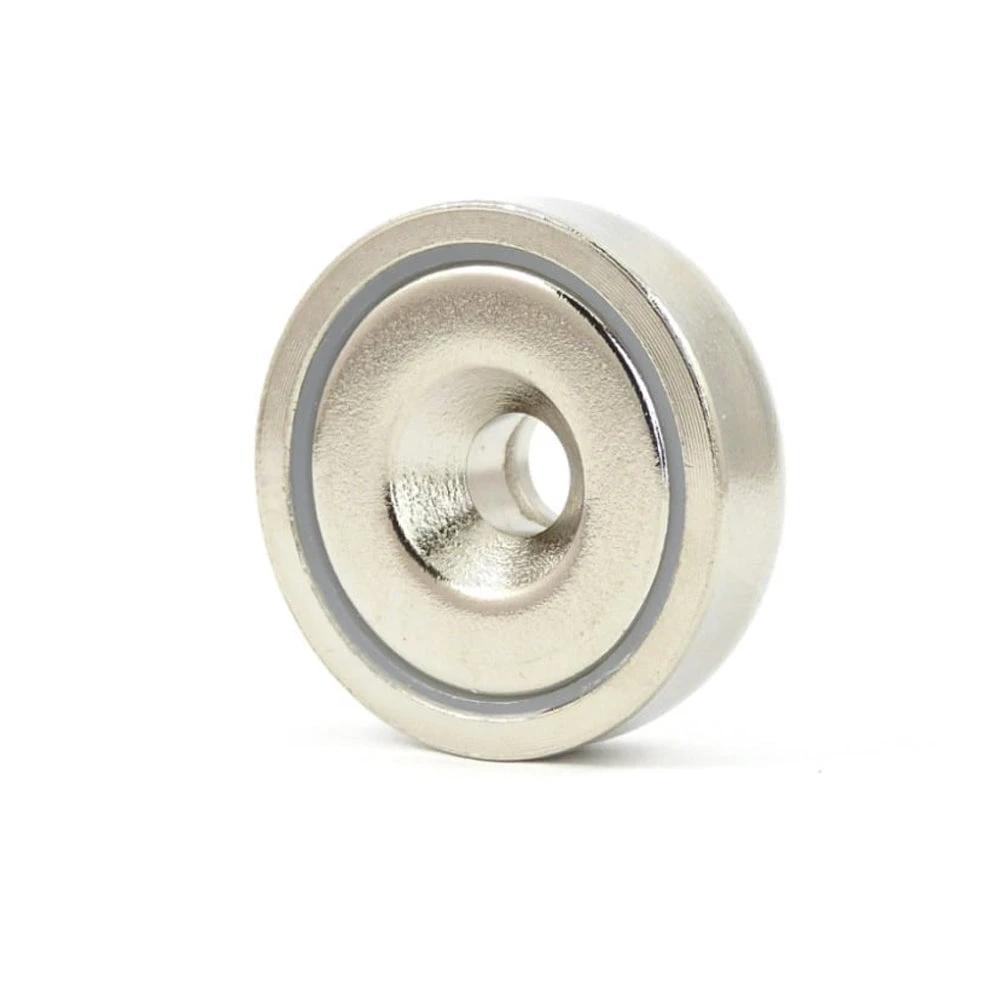

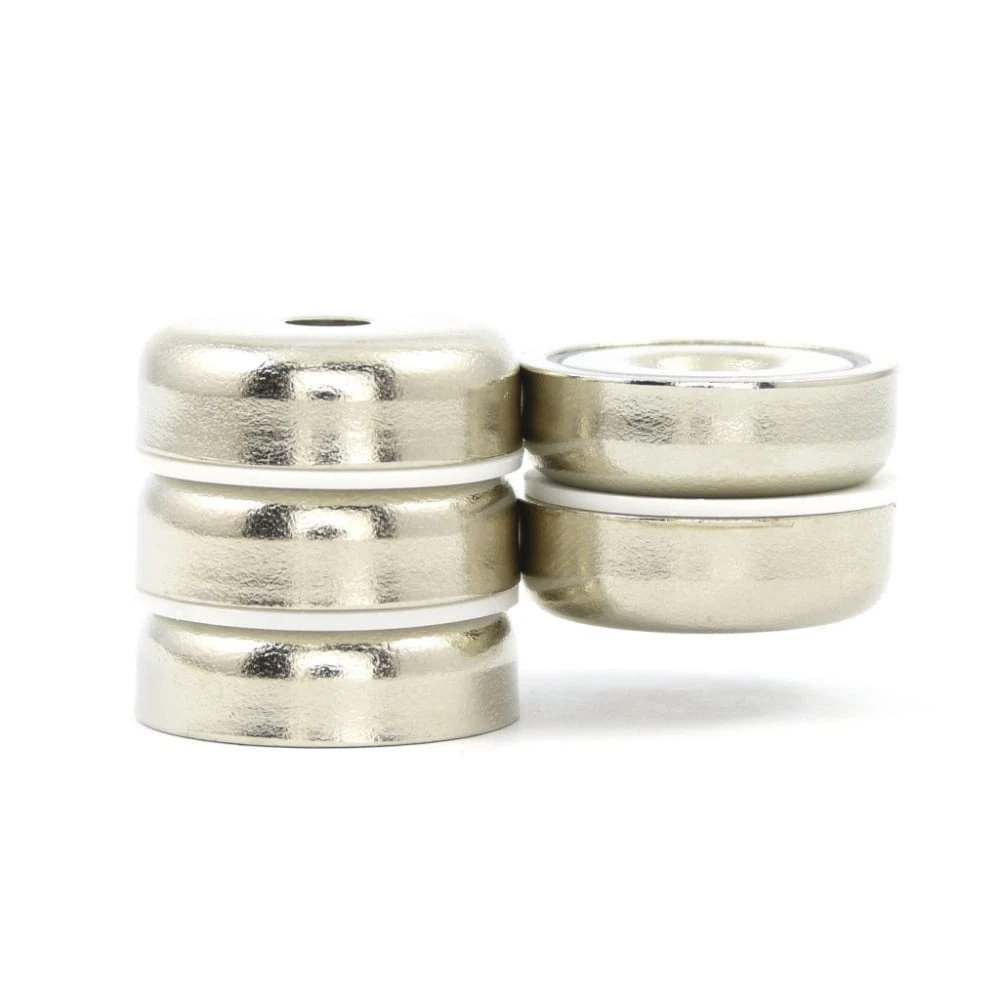

Neodymium Countersunk Pot Magnet – 20mm X 7mm

Magnetic Product Description:

This rare earth pot magnet has a diameter of 20mm, a countersunk hole diameter of 4.5mm and a thickness of 7mm. It has a pull force of 6kg and a weight of 13 grams. It is identified by the AMF magnet part number AMFYPA20.

Uses for our Rare Earth Countersunk Pot Magnets:

Commercial and retail interior shop fitting businesses delivering a one stop shop service define the project in four stages, each stage utilising magnets to help deliver the desired outcome, including these neodymium pot countersunk 20mmx7mm.

The first stage, design and planning engages magnets, often with magnetised work walls, to arrange and rearrange ideas and images at the fledgling stage that everyone can see and contribute. The gross motor movement at this stage of ideas and thoughts is made quickly and simply with the aid of magnets. Good ideas can be fleeting or elusive, magnets are quick enough to follow and capture them.

The second stage, the manufacture of the chosen materials and their exact specifications uses magnets as hold and release agents for tools and machines as the materials and equipment takes shape.

The project management and installation stage engages magnets most often in the hold, lock, release and re-engage applications in the many moving parts of shop and retail fit-outs. The countersunk feature of these pot magnets gives the tradespeople more fastening and attachment options than may otherwise be the case.

Our 20mm rare earth pot magnet is ideal for keeping gates open or closed and attaching different objects to any surface. This rare earth pot magnet is a high strength magnet in a mild-steel nickel coated pot.

ModelNo.	DØ	D1Ø	D2Ø	H	Holding force (kg)	Weight (g)
AMFYPA16	16	3.5	6.5	5	5	7
AMFYPA20	20	4.5	8.5	7	6	13
AMFYPA25	25	5.5	10.4	8	14	23
AMFYPA32	32	5.5	10.4	8	25	39
AMFYPA36	36	6.5	12	9	29	52
AMFYPA42	42	6.5	12	7.9	58	65
AMFYPA48	48	8.5	16	11.5	68	120
AMFYPA60	60	8.5	16	15	112	252
AMFYPA75	75	10.5	19	18	162	488
