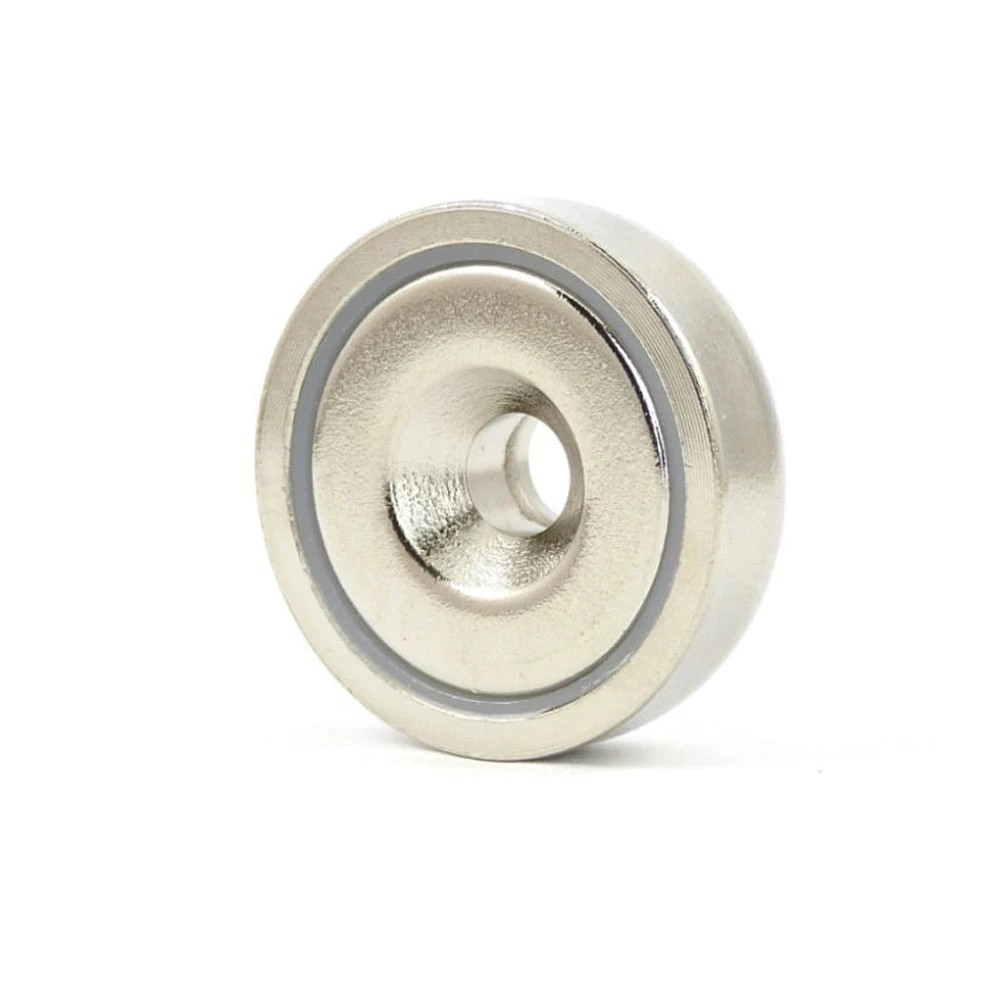

Neodymium Countersunk Pot Magnet – 75mm X 18mm

Magnetic Product Description:

This rare earth pot magnet has a diameter of 75mm, a countersunk hole diameter of 10.5mm and a thickness of 18mm. It has a pull force of 162kg and a weight of 488 grams. It is identified by the AMF magnet part number AMFYPA75.

Uses for our rare earth countersunk pot magnets:

With a pull force of 162 kg these countersunk pot magnets 75mmx18mm are not for the faint hearted. Lifting, holding and securing heavy objects is a serious business and can be dangerous if trouble strikes.

Machinery and equipment allied with these magnets, the void of which allows for the attachment of a hook or eyelet, reduce the risks in engaging, lifting, carrying, lowering and releasing heavy objects. Magnetic engagement allows a secure hold and release at a pre-determined pull force, necessary for industrial scale applications.

Magnetic force and engagement provides more security before, during and after the lift than chains, slings and ropes. When the going gets tough, the tough get going. When the going gets heavy, lighten the load with magnetic force. Allied with cranes, hoists and winches, these, 75mmx18mm countersunk pot magnets, sometimes with hooks or eyelets attached, also find happy homes in hospitals, home care aids and aged care facilities.

While magnets are a different kind of fastening system with unrivalled capabilities they are surprisingly cost effective. Steel, stone, concrete and solid timber, just some of the materials married to magnets of all kinds, for fixing, holding, releasing, and re-engaging as the preferred connective tissue.

This rare earth pot countersunk magnet is the strongest magnet in this category. When a very strong holding magnet is required, our 75mm pot magnet is ideal. Due to the 162kg pull force it is commonly requested by customers who require powerful magnets for specific manufacturing purposes. It has a high strength magnet in a mild-steel nickel coated pot with a countersunk hole.

SKU	DØ	D1Ø	D2Ø	H	Pull Force (kg)	Weight (g)
AMFYPA16	16	3.5	6.5	5	5	7
AMFYPA20	20	4.5	8.5	7	6	13
AMFYPA25	25	5.5	10.4	8	14	23
AMFYPA32	32	5.5	10.4	8	25	39
AMFYPA36	36	6.5	12	9	29	52
AMFYPA42	42	6.5	12	7.9	58	65
AMFYPA48	48	8.5	16	11.5	68	120
AMFYPA60	60	8.5	16	15	112	252
AMFYPA75	75	10.5	19	18	162	488
