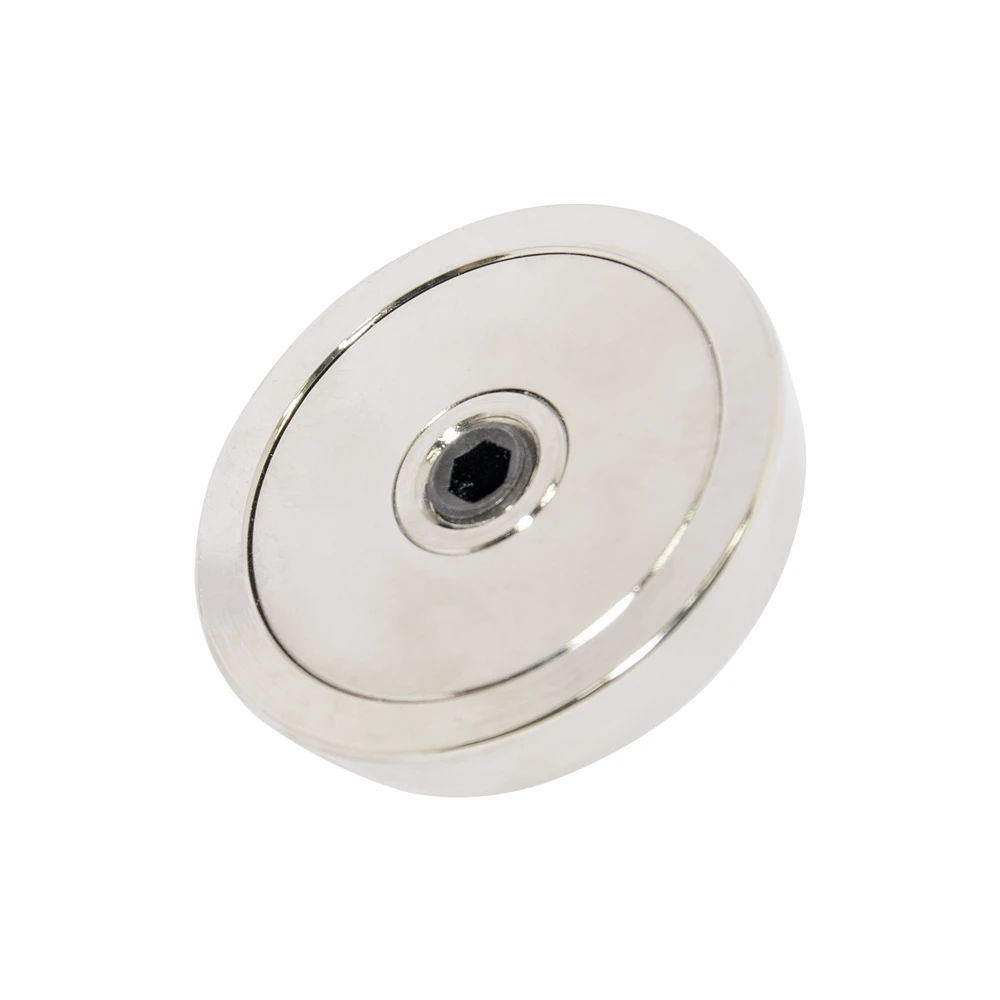

Neodymium Magnetic Fixing Plate – D74mm | M24 Thread

Magnetic Product Description:

The Neodymium Magnetic Fixing Plate, with a 74mm diameter and M24 thread, is expertly designed to securely attach sockets to steel formwork. With a pull force of 100kg, total height of 40mm; and comes with a with a 28mm boss thread.

It is identified by AMF Magnetics Part Number MFP24, this plate is a reliable and essential tool in the industry.

Uses for our Neodymium Magnetic Plates:

Modern construction and infrastructure projects are more commonly using prefabricated concrete sections that are fabricated off-site in controlled factory environments because they produce higher quality concrete sections. These finished concrete fabrications are then transported to the project by road. During fabrication, safe and secure lifting points need to be created, so sockets are inserted into the steel formwork. These Fixing Plate magnets hold the socket in position on steel mouldings, reinforcement bars or formwork prior to the concrete pour and, once the concrete has cured, they can be easily unscrewed and removed, leaving the socket embedded in the solid concrete structure. The very heavy finished concrete slab can then be lifted onto trucks and manoeuvred into the correct position safely by crane. The steel formwork and magnetic fixing plates can be reused again and again which makes the prefabricated construction system very economical and, to some extent, more environmentally friendly. Various sizes are available to suit different types of concrete panels.
