Neodymium Pot Magnet With Round Hole – 25mm X 8mm

Magnetic Product Description:

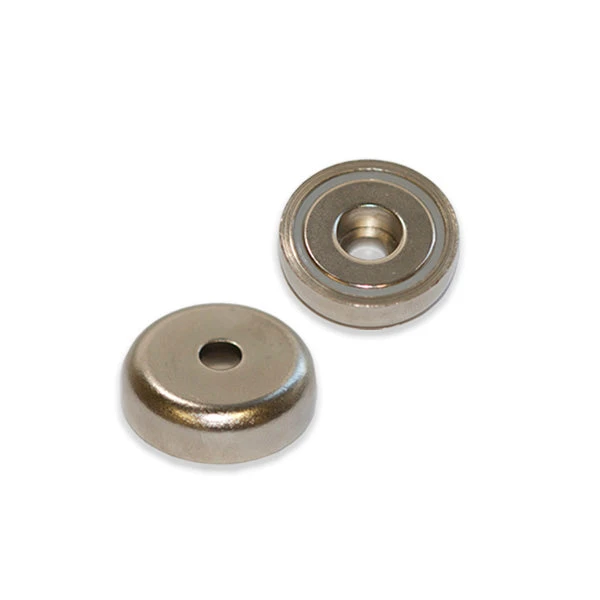

This rare earth pot magnet has an outside diameter of 25mm and an inside diameter of 5.5mm with an internal flange hole of 9mm. This round hole pot magnet has a thickness of 8mm, a pull force of 14kg and a weight of 23 grams. It is identified by the AMF magnet part number AMFYPB25.

Uses for our rare earth round hole pot magnets:

These Neodymium Pot Magnets have a round hole and are commonly attached using a bolt or integrated into an individual product design. The steel casing that protects the magnet from chipping and cracking also augments the magnetic field of the internal magnet. This also has the added benefit of creating a single-sided magnet that is stronger than a stand-alone magnet which can be highly beneficial in some application where there is a need to minimise any stray magnetic field. This magnet is popular with farmers, miners or anyone working with heavy machinery as its reliable holding force makes it perfect for attaching additional equipment such as electric drive systems, GPS tracking and guidance systems for mining vehicles and underground mining equipment.

ModelNo.	DØ	D1Ø	D2Ø	H	Holding force(kg)	Weight (g)
AMFYPB16	16	3.5	6.5	5	4	6
AMFYPB20	20	4.5	8	7	6	12
AMFYPB25	25	5.5	9	8	14	23
AMFYPB32	32	5.5	9	8	23	36
AMFYPB36	36	6.5	11	7.9	29	50
AMFYPB42	42	6.5	11	9	32	73
AMFYPB48	48	8.5	15	11.5	63	114
AMFYPB60	60	8.5	15	15	95	240
AMFYPB75	75	10.5	18	18	155	471
