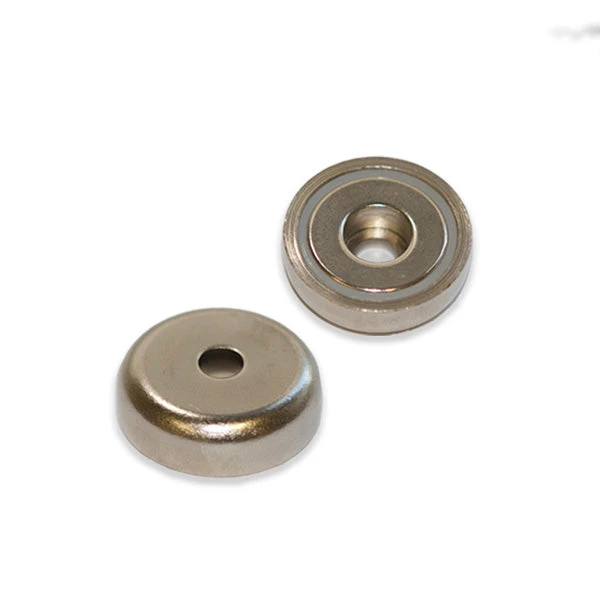

Neodymium Pot Magnet With Round Hole – 32mm X 8mm

Magnetic Product Description:

This rare earth pot magnet has an outside diameter of 32mm and an inside diameter of 5.5mm with an internal flange hole of 9mm. This round hole pot magnet has a thickness of 8mm, a pull force of 23kg and a weight of 36 grams. It is identified by the AMF magnet part number AMFYPB32.

Uses for our rare earth round hole pot magnets:

A bolt can be used to position this rare earth holding pot magnet. Neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for extra protection against damage. Due to the protective cover on these pot magnets, they are a single sided magnet.

ModelNo.	DØ	D1Ø	D2Ø	H	Holding force(kg)	Weight (g)
AMFYPB16	16	3.5	6.5	5	4	6
AMFYPB20	20	4.5	8	7	6	12
AMFYPB25	25	5.5	9	8	14	23
AMFYPB32	32	5.5	9	8	23	36
AMFYPB36	36	6.5	11	7.9	29	50
AMFYPB42	42	6.5	11	9	32	73
AMFYPB48	48	8.5	15	11.5	63	114
AMFYPB60	60	8.5	15	15	95	240
AMFYPB75	75	10.5	18	18	155	471
