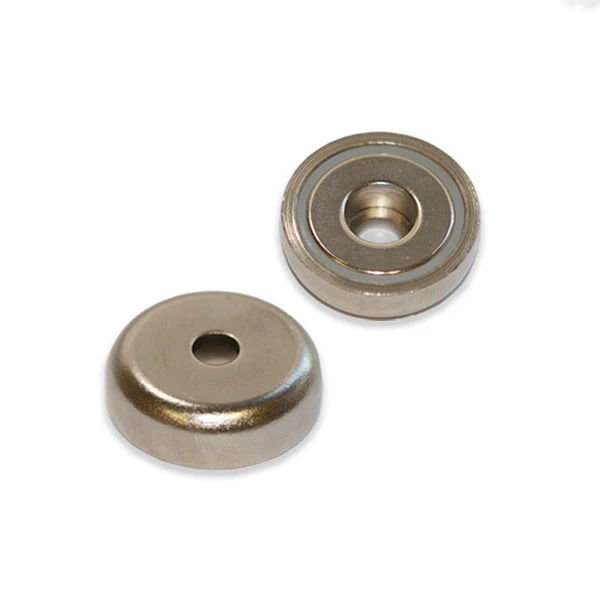

Neodymium Pot Magnet With Round Hole – 36mm X 9mm

Magnetic Product Description:

This rare earth pot magnet has an outside diameter of 36mm and an inside diameter of 6.5mm with an internal flange hole of 11mm. This round hole pot magnet has a thickness of 9mm, a pull force of 29kg and a weight of 50 grams. It is identified by the AMF magnet part number AMFYPB36.

Uses for our rare earth round hole pot magnets:

These Neodymium Pot Magnets have a round hole making them more versatile, able to be attached with a simple bolt or integrated into a more complex mechanical system. The protective cap is made of mild steel and serves to decrease the risk of cracks and chips forming in the magnet when under heavy use. The casing also increases the magnetic power of the magnets as the field is amplified through the magnetic face of the magnet and minimised on the reverse side. This magnet is popular with industrial equipment fabricators for a variety of mechanical applications such as industrial shutters, security screens and automated guidance tracks.

Please allow tolerances of up to 2.5mm in thickness for this product. Contact our office for critical dimensions.

ModelNo.	DØ	D1Ø	D2Ø	H	Holding force(kg)	Weight (g)
AMFYPB16	16	3.5	6.5	5	4	6
AMFYPB20	20	4.5	8	7	6	12
AMFYPB25	25	5.5	9	8	14	23
AMFYPB32	32	5.5	9	8	23	36
AMFYPB36	36	6.5	11	9	29	50
AMFYPB42	42	6.5	11	9	32	73
AMFYPB48	48	8.5	15	11.5	63	114
AMFYPB60	60	8.5	15	15	95	240
AMFYPB75	75	10.5	18	18	155	471
