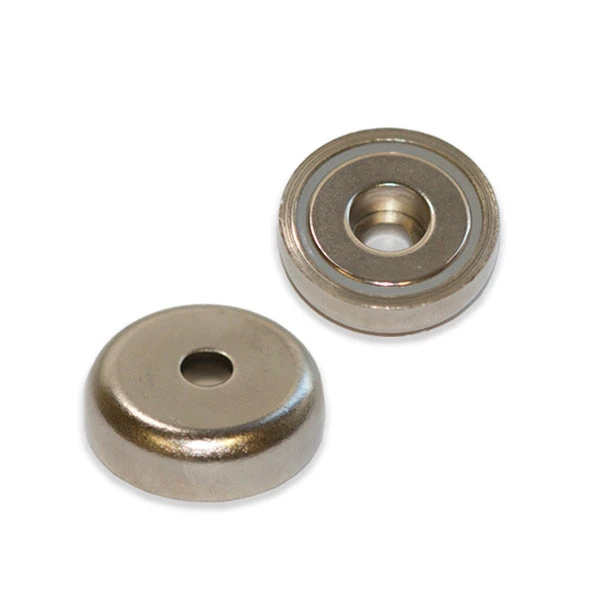

Neodymium Pot Magnet With Round Hole – 48mm X 11.5mm

Magnetic Product Description:

This rare earth pot magnet has an outside diameter of 48mm and an inside diameter of 8.5mm with an internal flange hole of 15mm. This round hole pot magnet has a thickness of 11.5mm, a pull force of 63kg and a weight of 114 grams. It is identified by the AMF magnet part number AMFYPB48.

Uses for our rare earth round hole pot magnets:

These Neodymium Pot Magnets have a round hole making them easy to attach using a bolt or by slotting them onto a protruding rod in a mechanical apparatus. The internal magnet is protected by a steel cap which enhances the magnetic field through the front face and reducing the magnetic field produced through the reverse side. This also means the pull-force of a pot magnet is stronger than a standard magnet. Popular with people working in the farming and mining sectors, these magnets have a robust and reliable hold that makes them ideal for people working with heavy machinery or in dynamic work environments.

ModelNo.	DØ	D1Ø	D2Ø	H	Holding force(kg)	Weight (g)
AMFYPB16	16	3.5	6.5	5	4	6
AMFYPB20	20	4.5	8	7	6	12
AMFYPB25	25	5.5	9	8	14	23
AMFYPB32	32	5.5	9	8	23	36
AMFYPB36	36	6.5	11	7.9	29	50
AMFYPB42	42	6.5	11	9	32	73
AMFYPB48	48	8.5	15	11.5	63	114
AMFYPB60	60	8.5	15	15	95	240
AMFYPB75	75	10.5	18	18	155	471
