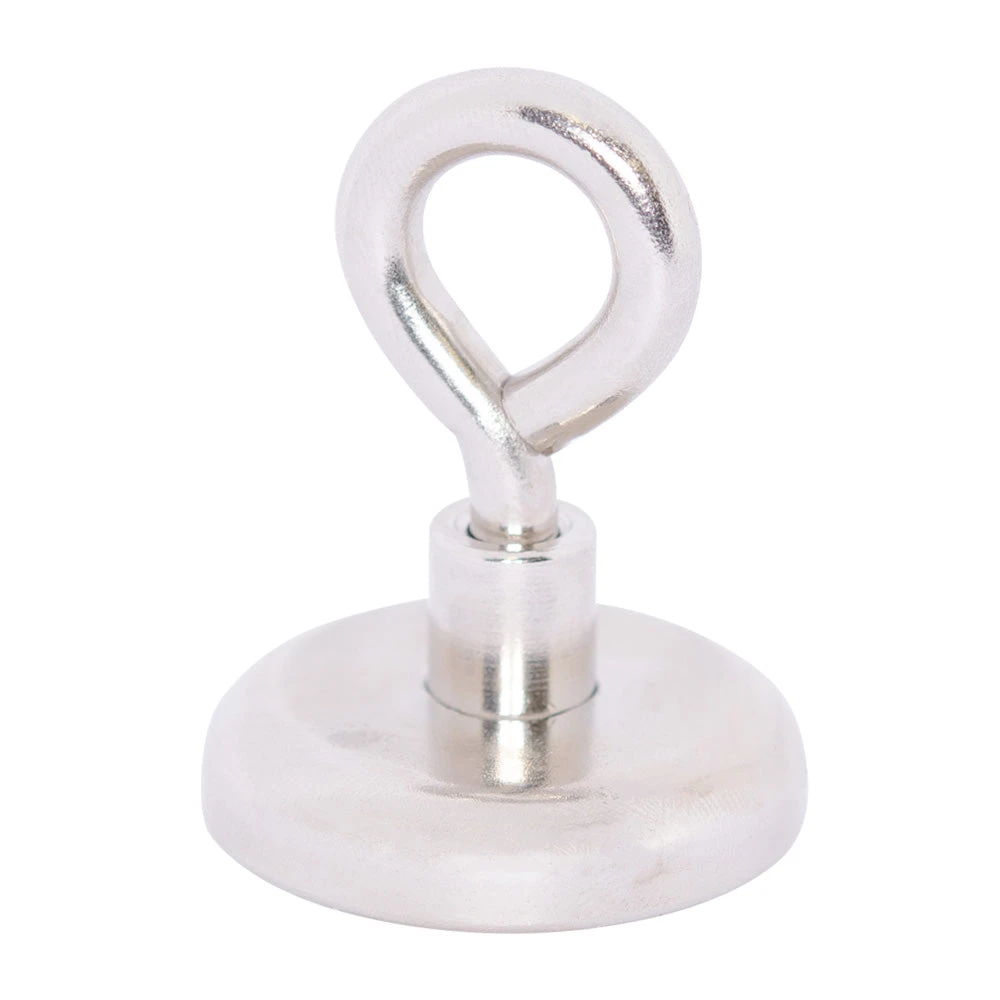

Neodymium Pot Magnet With Threaded Eyelet – 20mm X 4mm

Magnetic Product Description:

This Rare Earth Eyelet Holding Pot Magnet has a pull force of 9kg and a weight of 21 grams. It has a diameter of 20mm, a total height of 31mm and a magnet housing thickness of 7mm. This Neodymium pot magnet has an M4 thread with a 4mm eyelet. It is identified by the AMF Magnets part number AMFYPF20.

Uses for our Rare Earth Threaded Eyelet Pot Magnets:

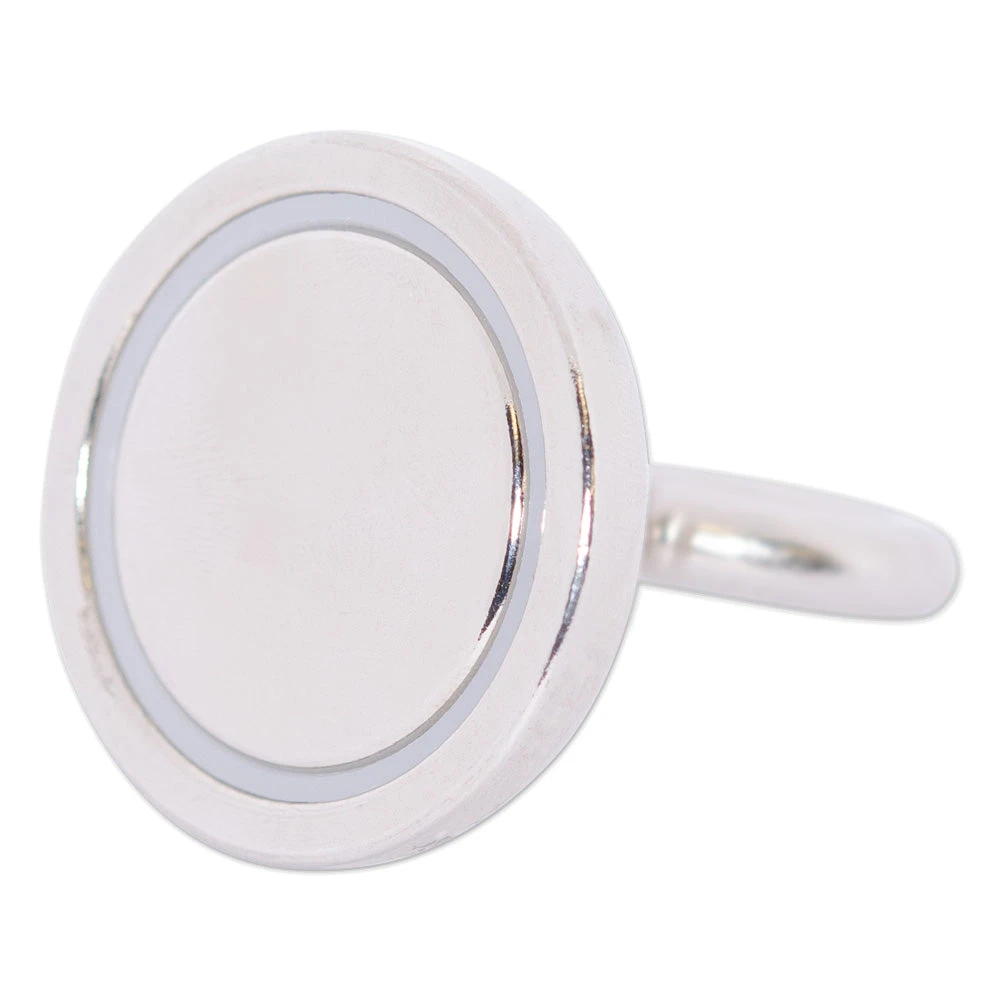

These Neodymium Threaded Eyelet magnets are a great way to keep hazardous items as well as wires and cables out of the way. They are quite versatile in nature due to the high strength of the magnet itself as well as the attachable and removable threaded eyelet. The strong neo magnet is encased in a mild steel casing, leaving the base of the magnet exposed. The casing manipulates the magnetic field to the exposed side, increasing the original pull force significantly. This specific eyelet has a diameter of 20mm and an impressive pull force of 9kg, allowing for reliability and efficiency. The most common application is suspension of various products but the eyelet allows for many other uses.



ModelNo.	DØ	d2	M	H	h	Holding force(kg)	Weight (g)
AMFYPF16	16	6	4	37	13	5.5	11
AMFYPF20	20	6	4	37	15	9	21
AMFYPF25	25	6	5	30	12	22	37
AMFYPF32	32	10	6	47	18	34	56
AMFYPF36	36	10	6	47	18	41	68
AMFYPF42	42	10	6	47	20	68	97
AMFYPF48	48	12	8	70	24	81	97
AMFYPF60	60	12	8	70	30	113	282
AMFYPF75	75	12	10	98	34	164	560

Pull Force:

The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface
(of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to
the effects of gravity and the lack of friction between the surface and the shiny magnet.
