Neodymium Threaded Eyelet Magnetic Description:

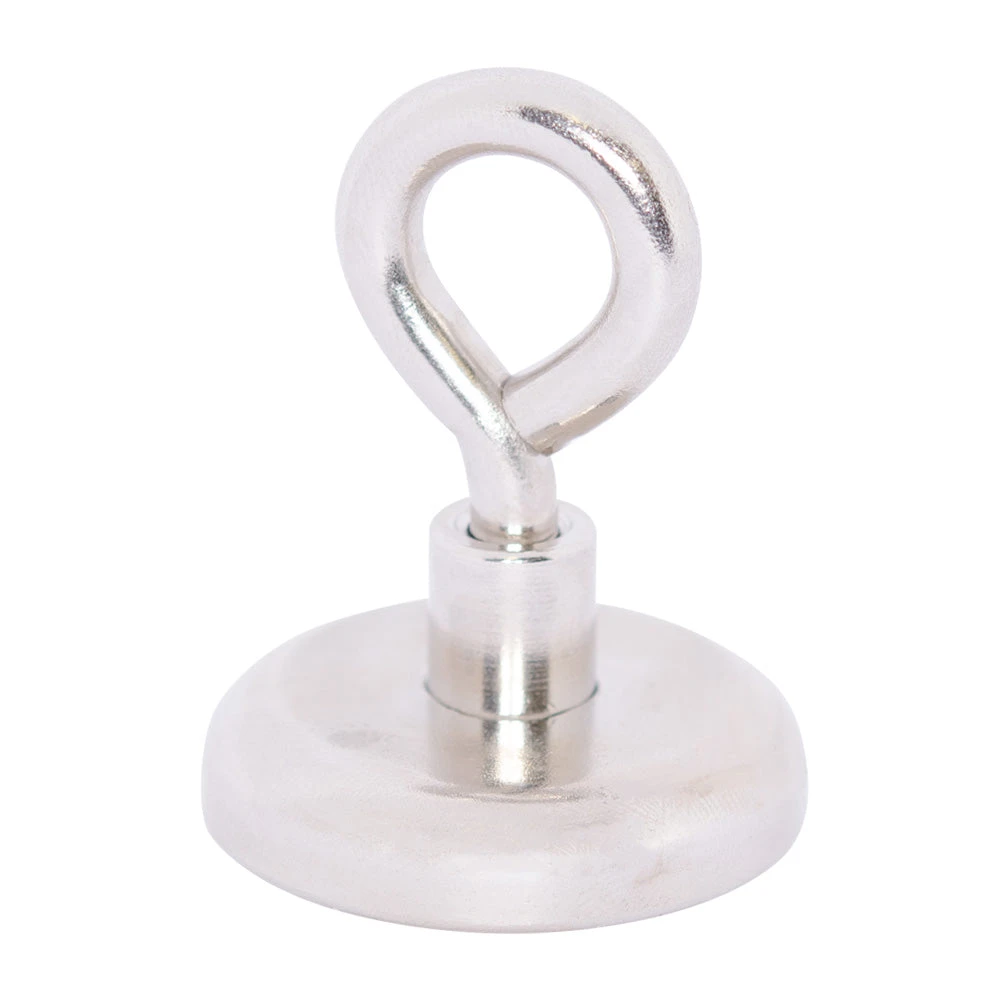

This Rare Earth holding magnet with a threaded eyelet is identified by the AMF magnet part number AMFYPF32. Powerful Neodymium magnetic material allows for a powerful pull strength of 34KG relative to its weight of 56 grams. It has a diameter of 32mm, a total height of 41mm and a magnet housing thickness of 8mm. This holding pot magnet has an M6 thread with an 6mm eyelet attached.
Uses for our Rare Earth Threaded Magnetic Pots:
These strong Neodymium pot magnets have a mild steel casing which protects the magnet from damage and redirects its magnetic field to the exposed base. This increases the magnetic holding force considerably, making these small magnets unexpectedly strong for their size!
This Rare Earth pot magnet also includes a female thread and a removable eyelet, adding versatility to the product. They are often used for suspension and hanging applications in warehouses, shops and garages.
These eyelet pot magnets are known as permanent magnets as they retain their magnetic pull unless exposed to high heat or moisture. This ensures reliability of the product as it will maintain its strength. You can use these rare earth threaded eyelets in a temporary application unlike most other hanging and fastening alternatives.
| ModelNo. | DØ | d2 | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPF16 | 16 | 6 | 4 | 37 | 13 | 5.5 | 11 |
| AMFYPF20 | 20 | 6 | 4 | 37 | 15 | 9 | 21 |
| AMFYPF25 | 25 | 6 | 5 | 30 | 12 | 22 | 37 |
| AMFYPF32 | 32 | 10 | 6 | 47 | 18 | 34 | 56 |
| AMFYPF36 | 36 | 10 | 6 | 47 | 18 | 41 | 68 |
| AMFYPF42 | 42 | 10 | 6 | 47 | 20 | 68 | 97 |
| AMFYPF48 | 48 | 12 | 8 | 70 | 24 | 81 | 97 |
| AMFYPF60 | 60 | 12 | 8 | 70 | 30 | 113 | 282 |
| AMFYPF75 | 75 | 12 | 10 | 98 | 34 | 164 | 560 |

Pull Force:
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
