Neodymium Rectangular Pot Magnet With Countersunk Holes – 60mm X 13.5mm X 5mm

Magnetic Product Description:

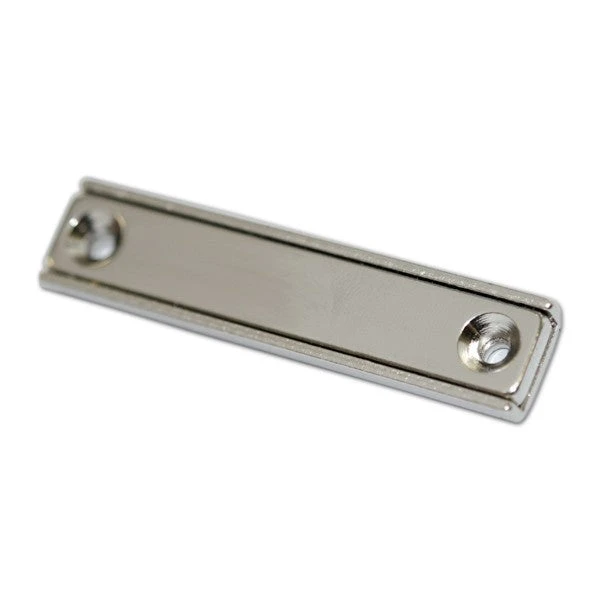

This rectangular pot magnet has a length of 60mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length between the centre of each countersunk hole is 50mm. This magnet has a weight of 27.9g and a pull force of 30kg. It is identified by AMF Product Code AMFYPSNi60.

Uses for our Rare Earth Rectangular Countersunk Pot Magnets:

This rectangular pot magnet is a neodymium magnet encased inside a chrome-plated steel channel. The steel channel also protects the magnet from being damaged during day to day use. This magnet measures 60mm in length, 13.5mm wide, and 5mm in height with two countersunk holes with diameters of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. Perfect for mounting, home improvement, DIY projects such as a tool holder. A popular use for these magnets is as cabinet door or shower door catchers.

Product Code	L	L1	W	H	D1	D2	Weight	Pull Force
AMFYPSNI10	10mm	5mm	13.5mm	5mm	3.3mm	6.5mm	4.5g	4kg
AMFYPSNI20	20mm	10mm	13.5mm	5mm	3.3mm	6.5mm	9.2g	8kg
AMFYPSNI40	40mm	30mm	13.5mm	5mm	3.3mm	6.5mm	18.4g	17kg
AMFYPSNI60	60mm	50mm	13.5mm	5mm	3.3mm	6.5mm	27.9g	30kg
AMFYPSNI80	80mm	70mm	13.5mm	5mm	3.3mm	6.5mm	37.8g	33kg
