Rectangular Stainless Steel Bars For Grate Magnet Frame | 200mm X 40mm X 5mm | SOLD PER PAIR

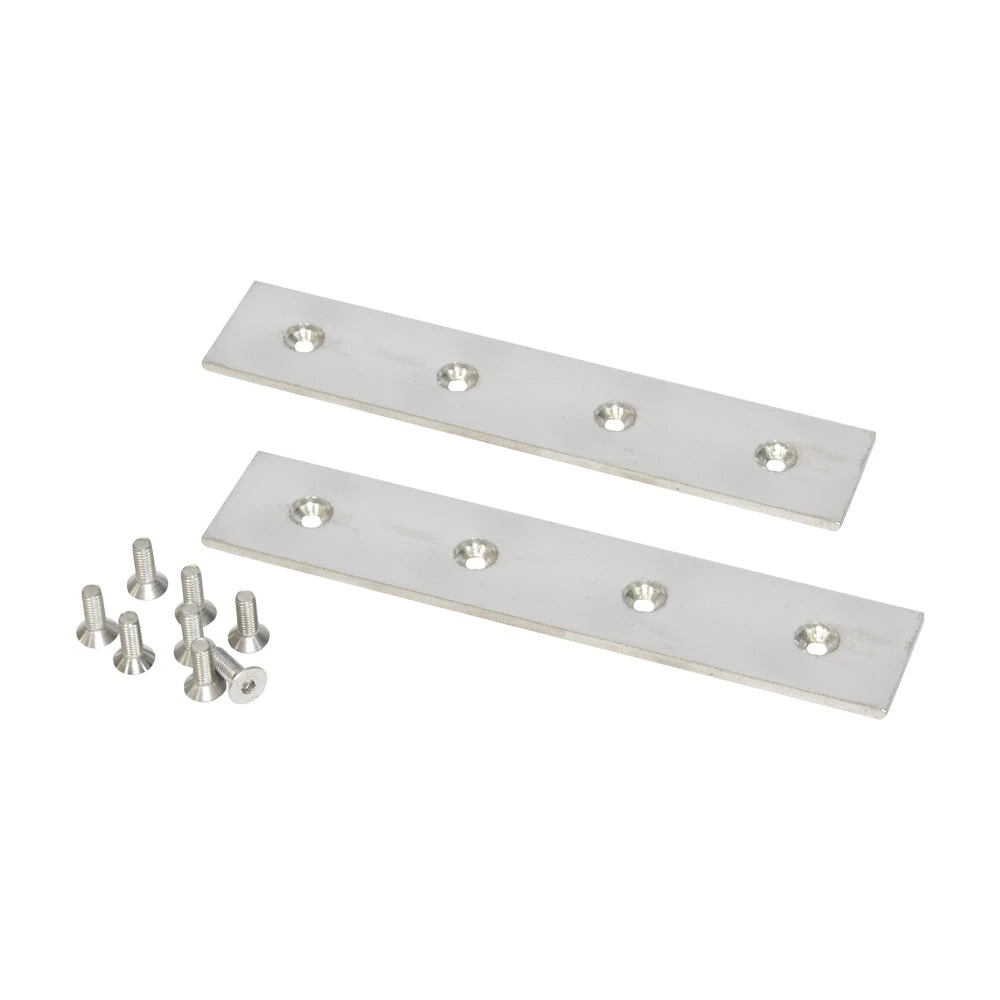

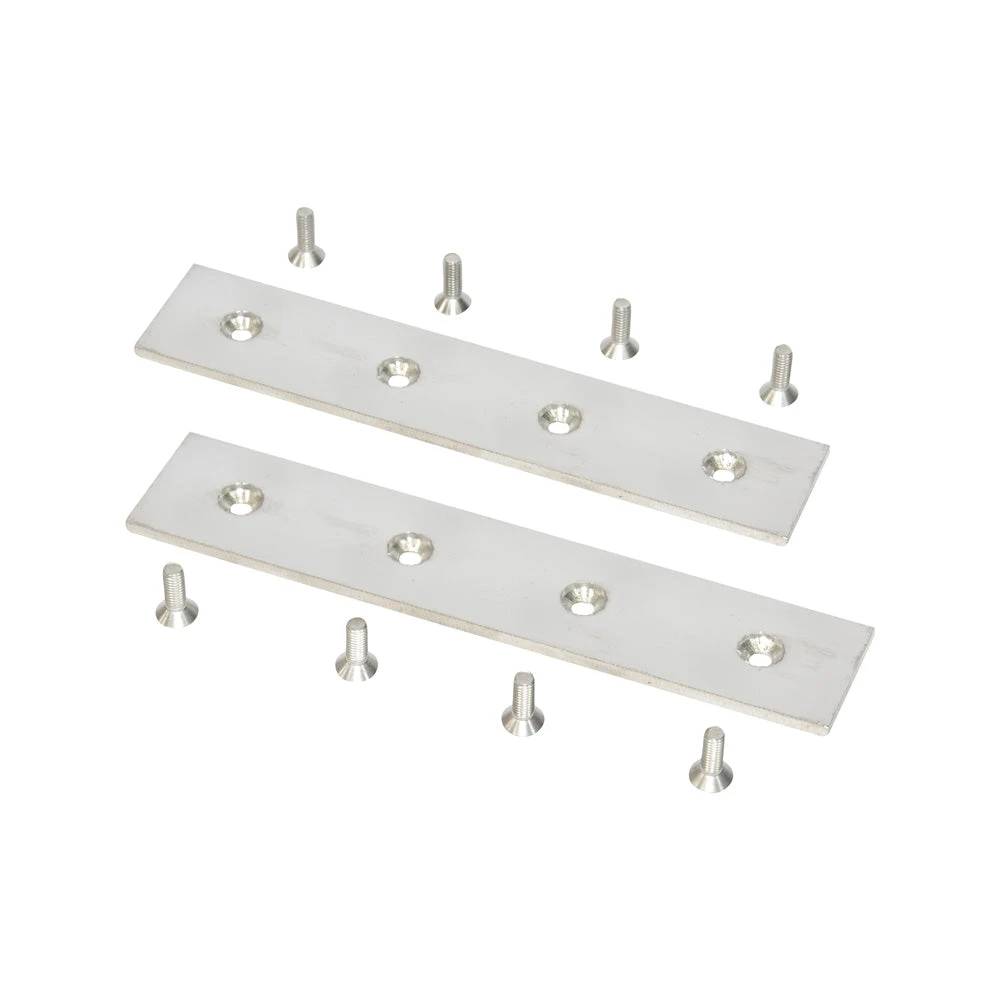

This pair of rectangular Stainless-Steel 304 bars are 200mm long, 40mm wide and 5mm thick. Each bar consists of 4 x M6 countersunk centre holes spaced at 50mmm apart. Fixing screws are included to build your own Grate Magnet. Separator Bar magnets are sold separately.

Uses for Rectangular Stainless-Steel Bars

These flat Stainless Steel bars are component parts for Grate Magnet devices. The Grate Magnets can operate in boutique or industrial scale food processing plants or any commercial food premises. The devices play an important role in preventing the contamination of raw materials during food processing. The Grates help to collect and remove ferrous metal swarf fragments and other ferrous material such as wire, nails and steel fasteners. The Grates are positioned in chutes or other parts of the production line where foodstuffs can flow freely over the magnetic device.. The magnets can then collect the contaminant metals from the passing raw or partially processed material.

Each pair of stainless-steel end plates can be used to fit and hold numerous stainless steel separator tube magnets. The fitting screws are also stainless steel and included with the steel plates, but the separator bar components are sold separately.
