Separator Bar Tube Magnet – 25mm X 300mm | M6 Thread | 10K Gauss

Magnetic Product Description:

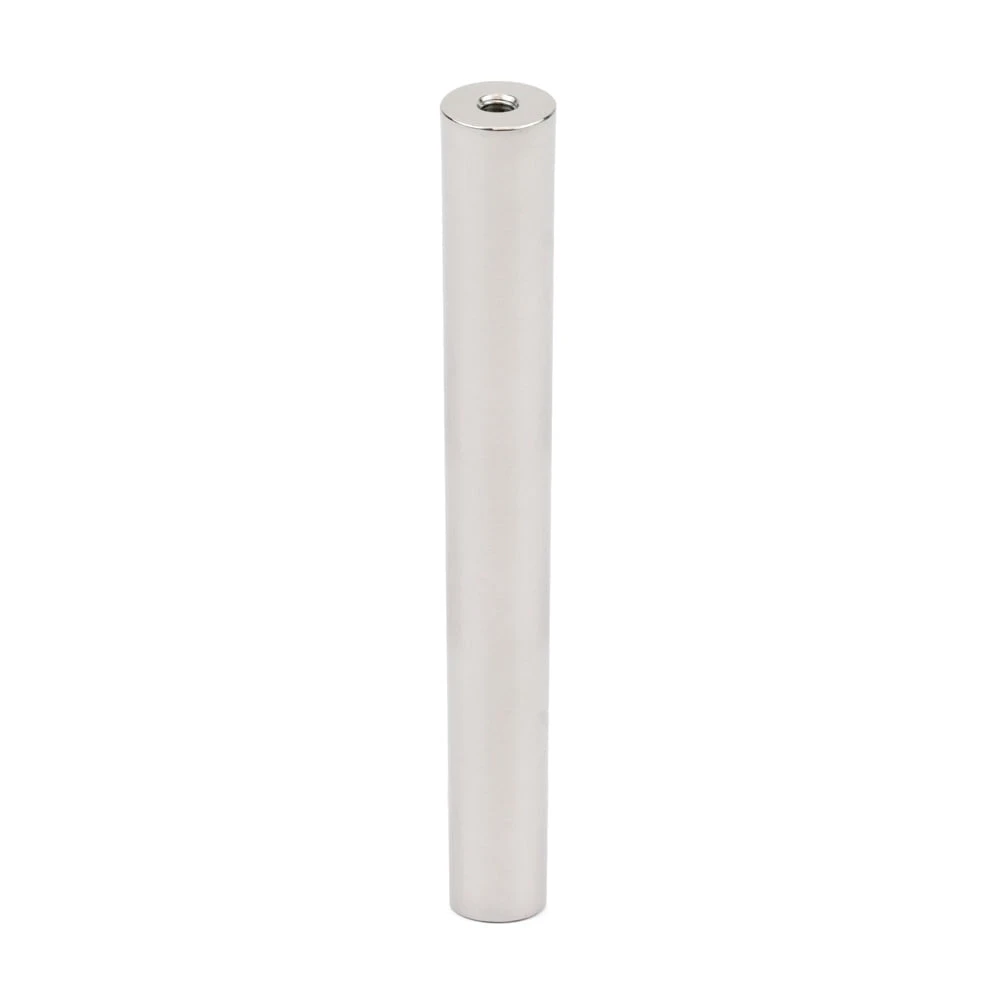

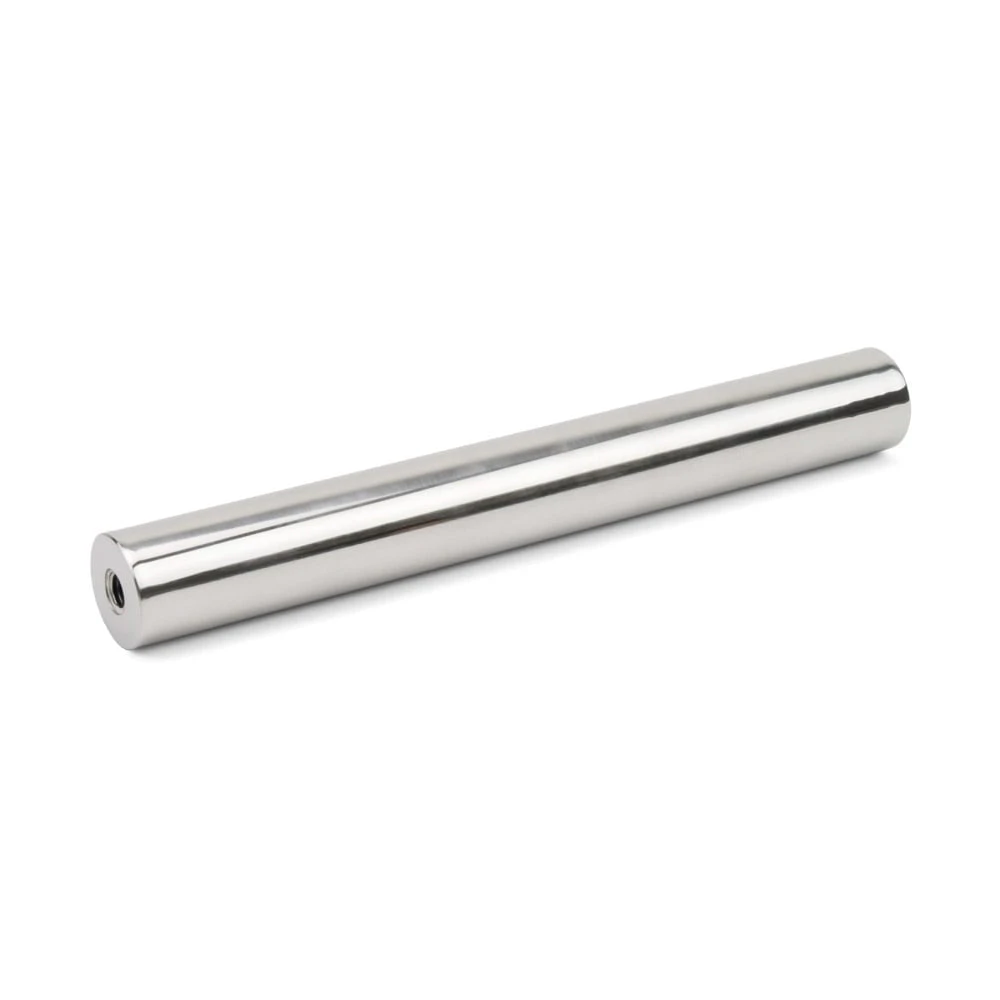

This Magnetic Separator Bar/Tube magnet features a 300mm length, 25mm diameter, and a 6mm thread on each end for easy installation. Crafted with a powerful neodymium magnet encased in stainless steel. This Separator Bar Magnet offers a minimum 10,000 gauss reading.

This Magnetic Separator Bar Magnet is identified by product code 93108.

Uses for our Separator Bar Tube Magnets:

Metallic foreign object debris (FOD) finds its way into food and beverage manufacturing processes through the raw materials of primary production. Magnetic Separator Bars at all stages of processing remove metallic contamination that originates on farming land, silos and feedlots in the form of wire, nails, screws, bolts, washers and clips.

Metal fragments of broken machinery must be arrested and by suspending Separator Magnets strategically above or below conveyer belts or at the opening to Hoppers or Storage Bins most of the contaminant material can be safely removed. As well as compliance with Food Authority legislation, vigilant decontamination monitoring reduces the incidence of recalls, reputational damage and lawsuits for damages and compensation. Avoiding costly downtime due to equipment failure is another benefit that Magnetic Separation provides.

This separator bar from AMF is 300mm in length and is ideal for collecting unwanted swarf and metal pieces that can contaminate industrial processes.
